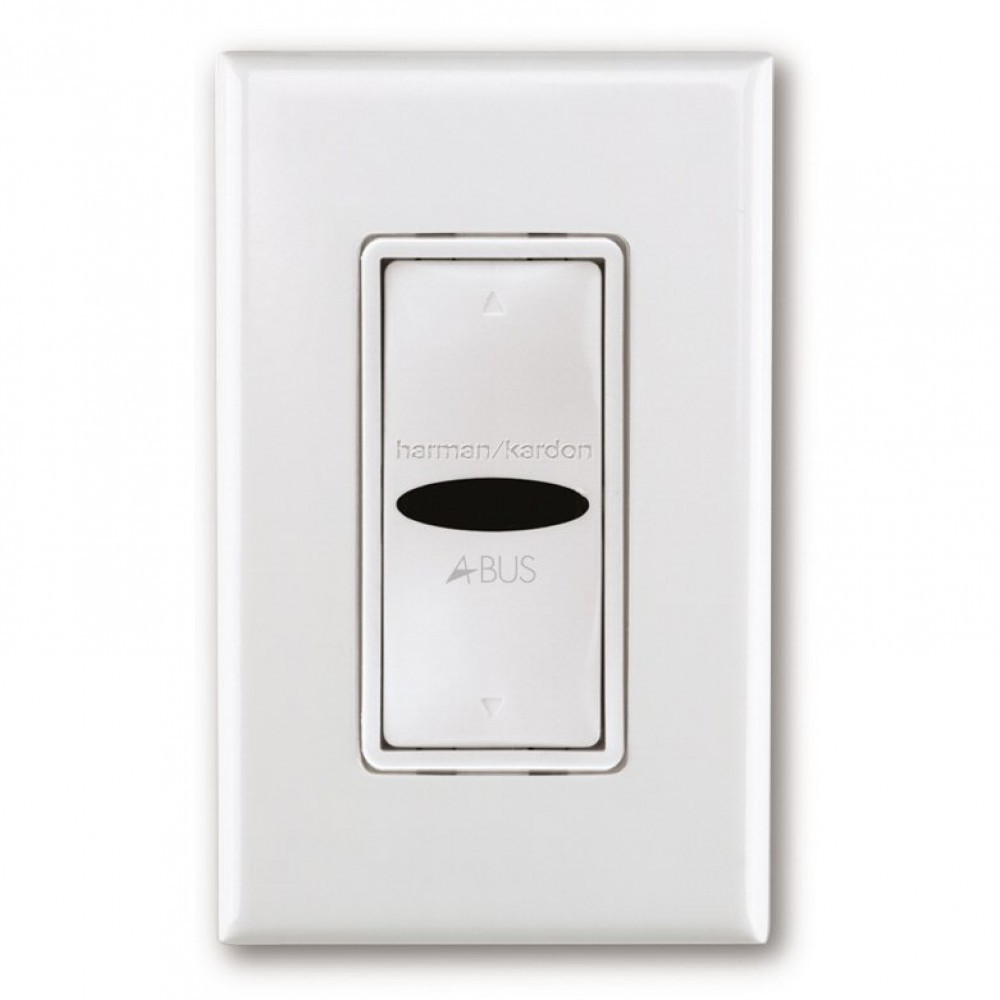

Harman/Kardon AB-1
1 500 kr
Väggmodul med inbyggd förstärkare och fjärröga för multiroom-lösningar. Passar endast till förstärkare med A-Bus utgång.
Highlights
- Easily adds a room to any A-BUS/ready™ Harman Kardon receiver
- Plays sources independently of the main system
- Built-in amplifier powers most speakers
- Built-in IR sensor for remote control of main system
- Built-in touch-volume controls
Multiple AB 1 modules can be connected to a Harman Kardon ABH expansion hub (or hubs) to build whole-house systems of up to sixteen rooms.
Key Specifications
■ Simplified A-BUS connections (A-BUS connection type: IDT, for Cat. 5/5e wire)
■ LED status light
■ Trim controls match AB 1 output to local speakers
■ Mounts in single-gang J-box or P-ring
■ Uses Decora® wall plate
■ Wiring protocol: TIA specification for T568A
■ Speaker connection type: screw terminals, 14 AWG maximum
■ Speaker impedance: 6–8 ohms
■ Speaker sensitivity: 88dB (2.83V/m) or greater
■ Infrared compatibility: 38kHz and 56kHz, with talkback
■ Dimensions (H x W x D): 108mm x 44mm x 57mm
■ Weight: 0.11kg
