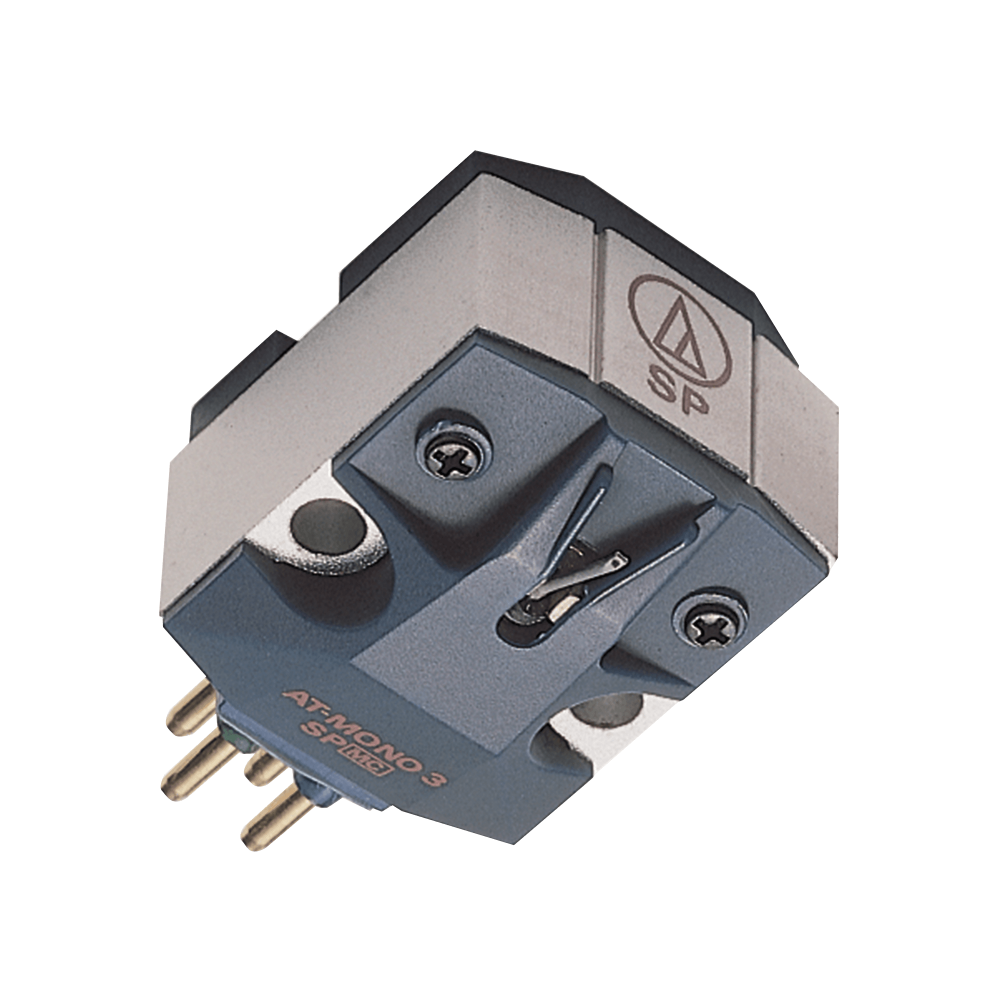

Audio Technica AT-MONO3/SP

Features

The Audio Technica AT-MONO3/SP cartridge is special – redesigning not just the needle, but the whole cartridge specially for “shellac” or phonograph records. A high output moving coil cartridge of excellent production quality and wound with PCOCC coil for signal purity, it is designed to deliver excellent fidelity and superb clarity when playing 78 RPM mono records. With its high output of 1.2 mV, it can be used without additional pre-amplification or a MC transformer. Proven in use for many years in Japan, the Audio-Technica AT-MONO3/SP cartridge in now available in Europe and helps to bring back the pure joy of discovery and listening pleasure for 78 RPM record playing.
Made specifically for mono recordings, the cartridge only generates signal with horizontal movement. However to produce a minimal wear on the groove, the AT-MONO3/SP also has an adapted vertical compliance.
Straight pipe aluminium cantilever and low mass stylus guarantees a high tracking ability.

The average usage time is 500 hours extending the life span of precious mono recordings.
High purity PCOCC allows a more transparent signal transmission offering a high efficiency and a high fidelity.

To support the internal mechanism, the body is made of solid die-cast aluminium alloy, furthermore stiffness is achieved with the addition of rigid synthetic resin to hold the body.

“a true mono cartridge”

The AT-MONO3/SP cartridge only generates electrical signal with horizontal movement due to the horizontal configuration of the coil.

“500 Hours of use”

The average usage time is 500 hours extending the life span of precious mono recordings.



Specifications
Cartridge & Stylus

Frequency Response 22 - 22,000 Hz
Vertical Tracking Angle 23°
Stylus Construction Nude Square Shank
Recommended Load Impedance 400 - 47,000 ohms
Coil Impedance 40 ohms (1 kHz)
DC Resistance 40 ohms
Coil Inductance 190 µm (1kHz)
Output Voltage 1.2 mV (at 1 kHz, 12 cm/sec)

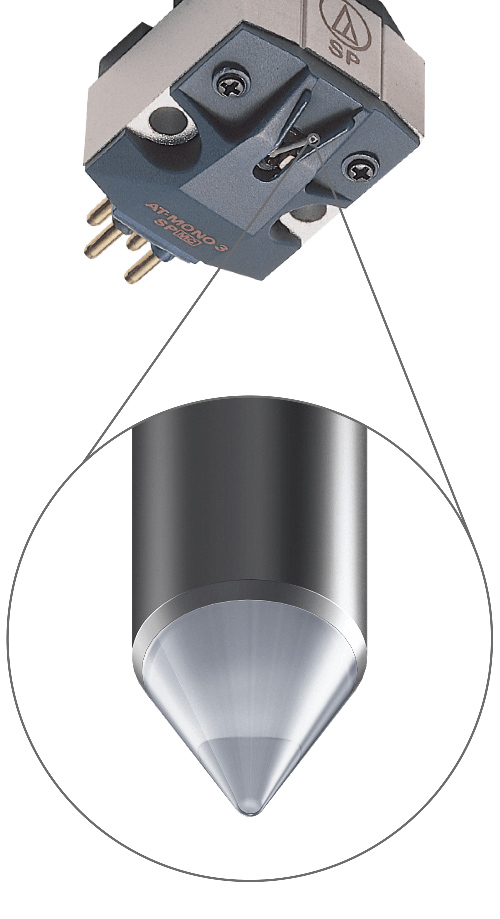

Stylus Shape Conical
Cantilever Aluminum Pipe
Static Compliance 10×10-6cm/dyne
Dynamic Compliance 3.5×10-6cm/dyne (100Hz)
Mounting 1/2" Centers
Dimensions 16.0 (H) x 16.6 (W) x 26.5 (L) mm
Accessories Included Screwdriver, 4 screws, 2 washers and 2 nuts, spacer/weight, stylus brush
Body Material Aluminium/Synthetic Resin
Stylus Size 2.5 mil
Type Horizontal Mono Moving Coil
Weight 6.8g
