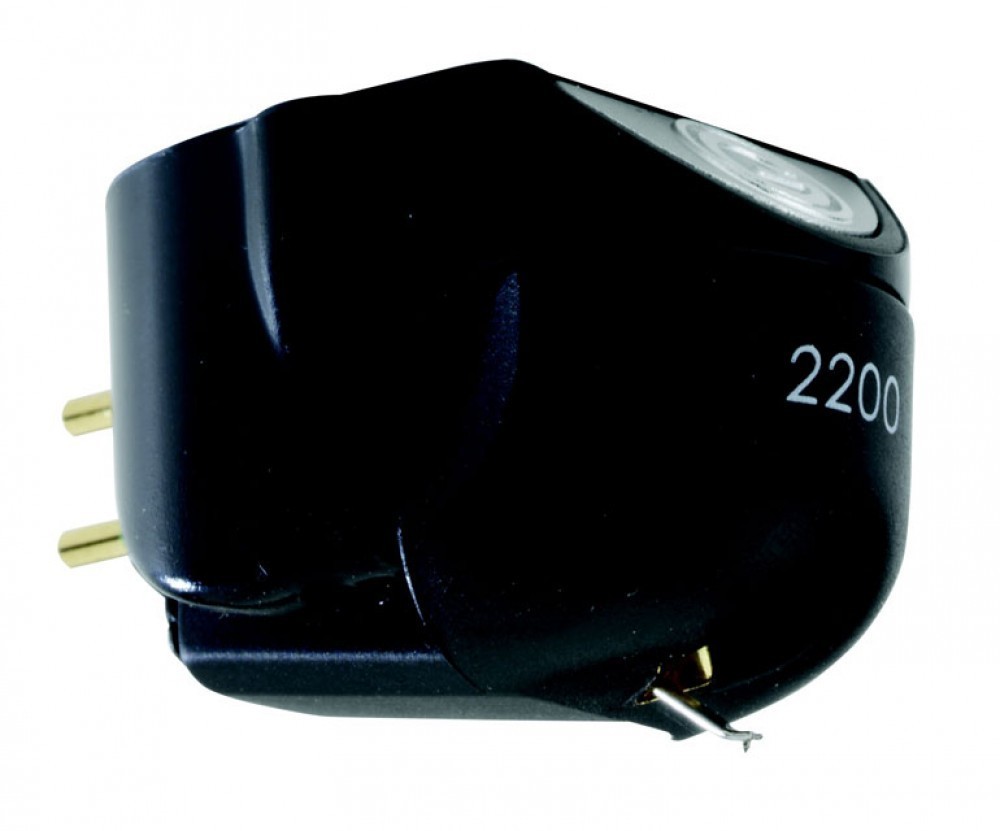

Goldring 2200

MM-pickup (Moving Magnet) från Goldring, Storbritannien.

Elliptical diamond stylus and plated alloy cantilever offers high definition. The super permalloy poleshoes also give superb high quality sound for this record cartridge.

Specifications:

Channel Balance: 2dB @ 1kHz
Channel Separation: >20dB @ 1kHz
Sensitivity: 6.5mV±1.5dB, 1kHz @ 5 cm/sec
Static Compliance: 20x
Vertical Tracking Angle: 24°
Stylus Radius: Elliptical .0007"x.0003"
Stylus Type: Replaceable
Load Resistance: 47,000 Ohm
Load Capacitance: 100-200pF
Internal Inductance: 680 mH
Internal Resistance: 550 Ohm
Cartridge Weight: 7.2g
Fixing Centre: 0.5 (12.7mm)
Playing Weight: 1.5-2.0g (1.7g nom.)
