Luma Surveillance™ 220 Series 2MP Dome IP Outdoor Camera

Luma Surveillance™ 220 Series 2MP Dome IP Outdoor Camera

This low-profile dome IP camera features 2MP resolution for 1080P viewing. Reduce false notifications and easily highlight and access key moments with built-in intelligent analytics. Using Starlight, the camera can provide crisp nighttime images in low-light environments. With OvrC, on-site or remote configuration is a breeze, no longer requiring you to tediously navigate each camera’s local UI. Adjust image settings in real-time, setup recordings, and more all via OvrC. Control System integration is always top of mind, and this camera is packed with features for Control4 along with many other popular control systems.

Important Note - When using legacy Luma X10 devices with new Luma X20 devices, they are not plug and play. The IP Cameras require initial preparation for successful deployment. Read more

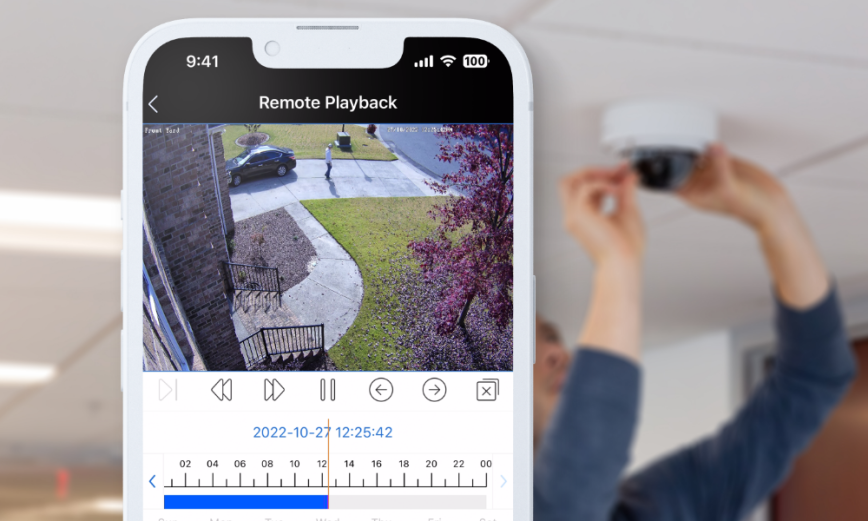

Intelligent Analytics

Featuring the latest AI technology like advanced human, vehicle, and non-motor vehicle detection, as well as AI-filtered events, you can reduce false notifications and have your customers more accurately respond to them. With AI-filtered events, your customers can quickly be notified, share, and view key moments their system finds throughout the day. With Luma, you can focus on the events that matter the most!

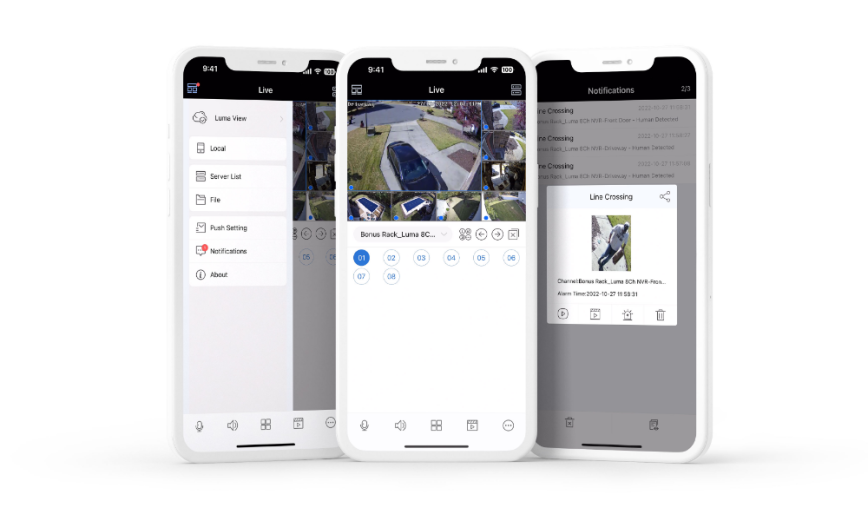

Do More with the Luma View App

Luma View gives your clients intuitive access to their surveillance system with push notifications, lightning-fast video viewing, easy access to share and view recordings, 16 channel synchronous playback, activity highlights with AI-filtered events, and more. Luma cameras also allow for remote customer handoff to the end-user with a Luma View app invitation through OvrC.

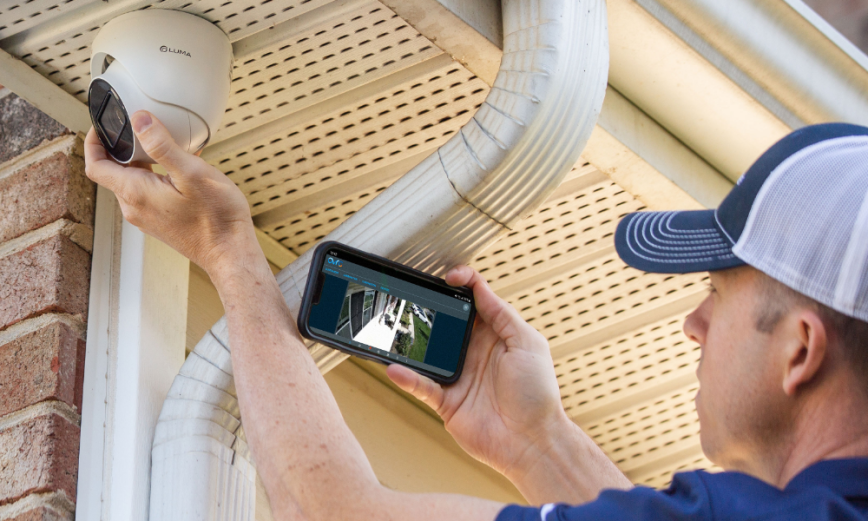

Fast Configuration with OvrC

Configuring cameras one-by-one via a local UI can be a long process. With Luma, OvrC enables you to fully deploy and configure an entire Luma system in a fraction of the time! Adjust event and image settings in real-time using a live video feed set up, AI-filtered events, set up recordings, and more all from OvrC’s easy-to-use interface while still being able to use local UI for advanced settings. With OvrC you can save up to 50% in configuration time per camera! OvrC doesn’t just help with setup, use OvrC to remotely manage Luma systems from anywhere in the world.

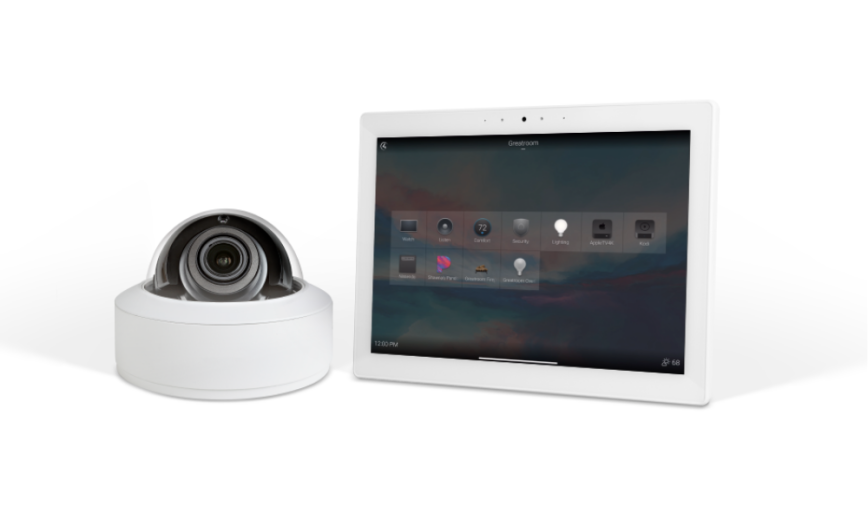

Robust Control System Capabilities

Control system integration has never been better with Luma. The Control4 surveillance experience has been rebuilt from the ground up with Thumbnails, Single Camera view, enhanced PTZ Controls and camera settings management. Dynamic Camera URLs speed setup with autodetection of resolution, advanced triggering off AI events, and more. Control system integration is available with additional control systems as well.

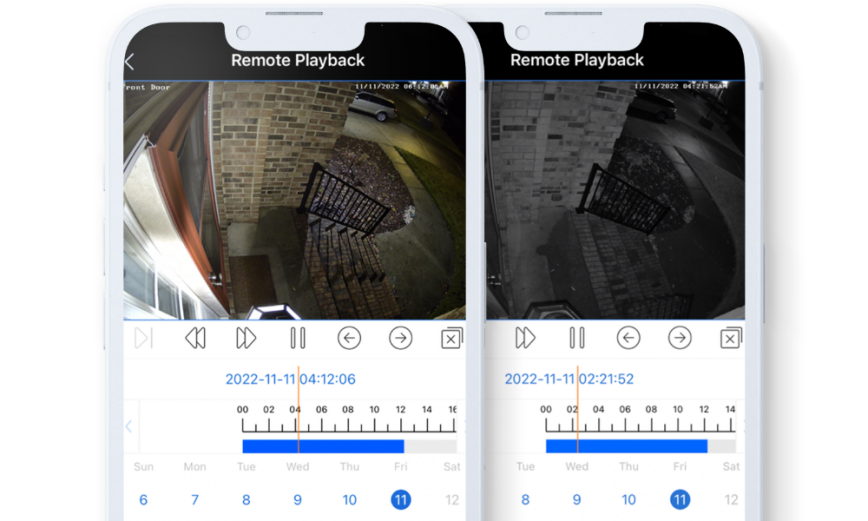

See at Night with Starlight

Starlight improves nighttime performance by automatically adapting to changes in ambient light, resulting in a detailed color image and improved clarity in low-light conditions.

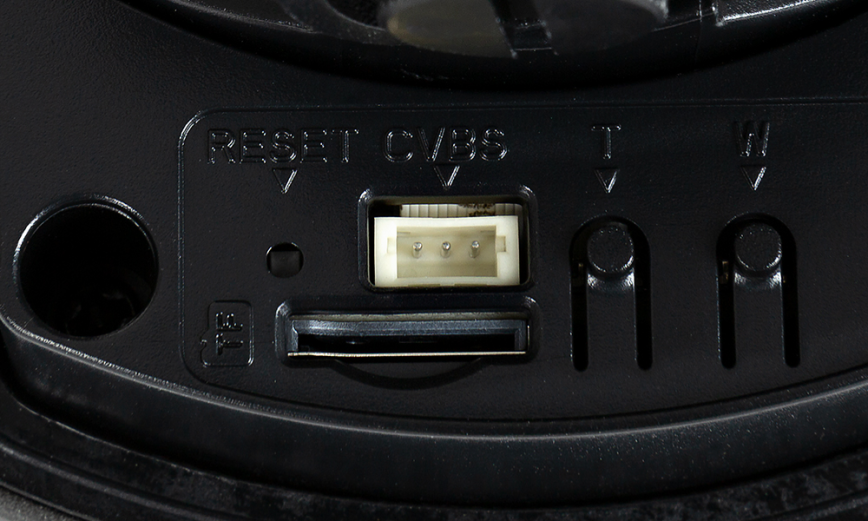

Local Storage with Playback

For local recording and/or redundancy, take advantage of edge storage using a surveillance-rated SD card (not included) with support up to 256GB. Playback of these events are available in the Luma View app.

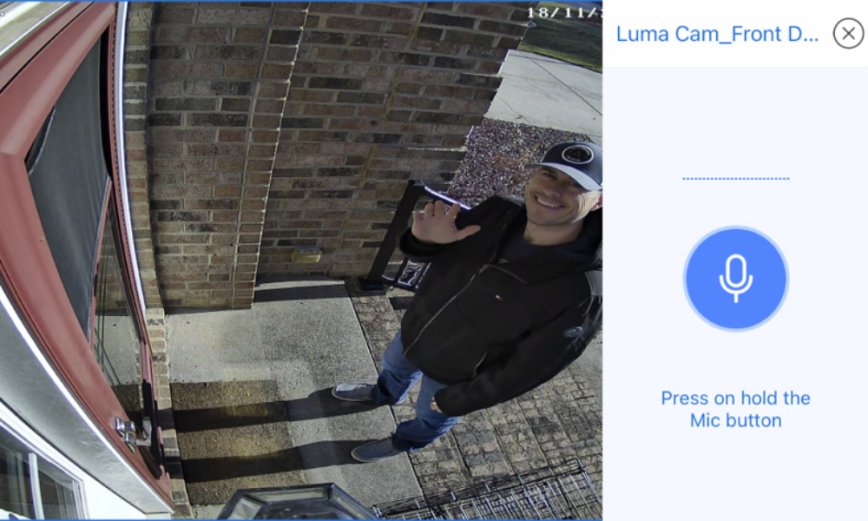

Built-In Microphone & Audio Input

Built-in microphone enables monitoring and recording of audio and by default is disabled for your client’s privacy. You can quickly enable the microphone through OvrC and then have your customer choose when to have the microphone on or off in the Luma View app, so they have full control of their audio preferences. An external audio input provides the ability to inject other audio or microphone into the same video stream.

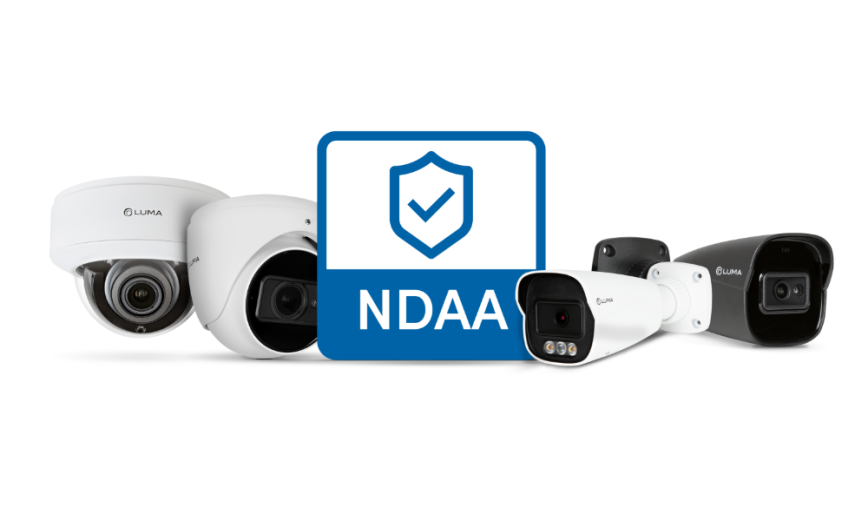

NDAA Compliant

We have you covered for any job that requires NDAA compliant equipment. All Luma X20 family surveillance solutions are fully NDAA compliant.

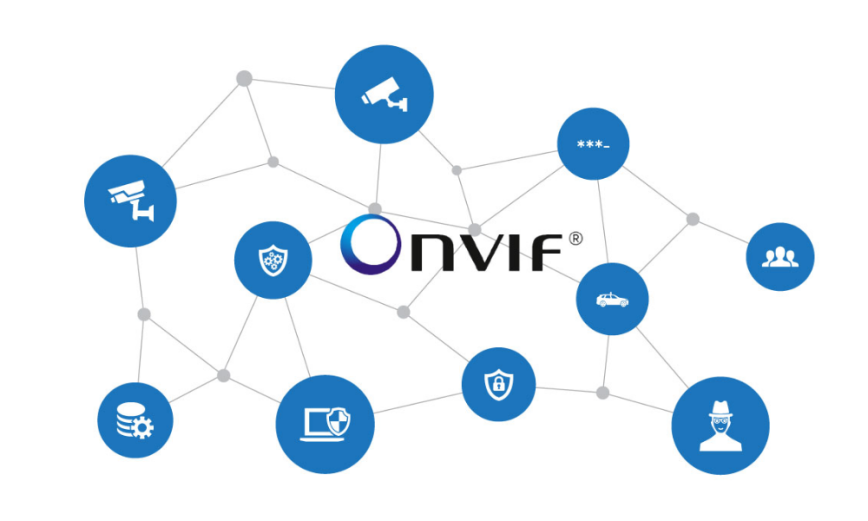

ONVIF Conformant

Luma cameras are fully ONVIF conformant to provide you even greater choice and flexibility when designing or updating systems. With ONVIF, you can easily identify specific interoperable features from access control and edge storage to door control and streaming video.

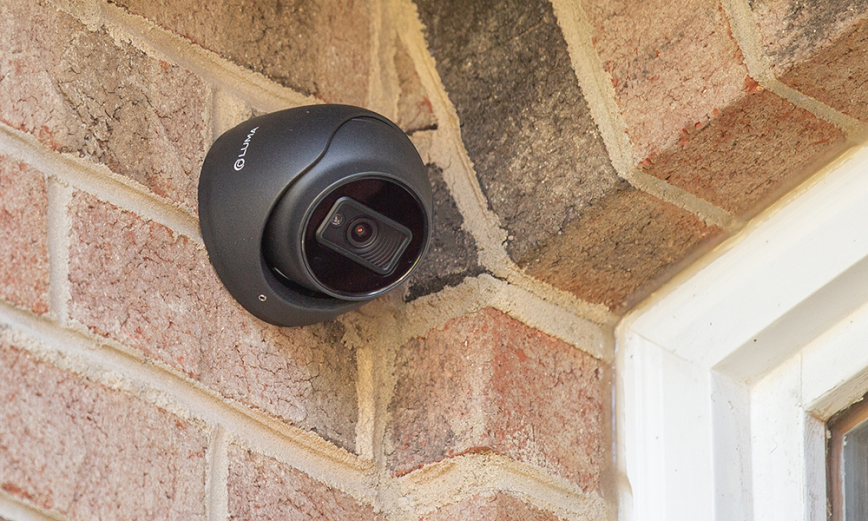

Low-Profile Housing

Low-profile housing provides a more discrete and aesthetically pleasing install for your clients.

Specifications

Outdoor Rating
IP67

Protection Rating
IK10

Image Sensor
2MP (1920 x 1080 Resolution)

Frame Rate Max
30FPS

Shutter Speed
1/2s - 1/100000s

Lens
2.8mm

Minimum Illumination
0.005 lux, AGC ON; 0 lux with IR

Aperture
F1.6

Field of View
Horizontal: 106°
Vertical: 55°

Angle
Pan: 0° - 355°
Tilt: 0° - 67°
Rotation: 0° - 355°

IR Range
20 - 30m

Smart IR
Yes

WDR
120dB

Backlight Compensation
Yes

Highlight Compensation
Yes

DNR
3D DNR

Recording Trigger
Motion, Line Crossing, Intrusion, Target Counting

AI Event
Human, Vehicle & Non-motor Vehicle Detection

Motion Detection
Yes

Image Snapshot
Yes

Streams
Main Stream: Up to 2MP H.265+
2nd Stream: 704 x 480 H.264
3rd Stream: 704 x 480 H.264
4th Stream: 1280 x 720 H.265, H.264, MJPEG

Microphone
Yes

SD Card Support
Yes, up to 256GB

Audio Input Connectors
1 Channel / No

Alarm Contact Inputs/Outputs
No

Network / Ethernet Desc.
PoE, IEEE802.3af

CVBS Output
No

Browser Support
Chrome, Firefox, Safari, Edge, IE Mode in Edge

Power Consumption
DC12V/PoE, < 5W

Certifications
ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance

Operating Temperature
-30 °C - 60°C

Dimensions (W x H x D)
119mm x 87.8mm
