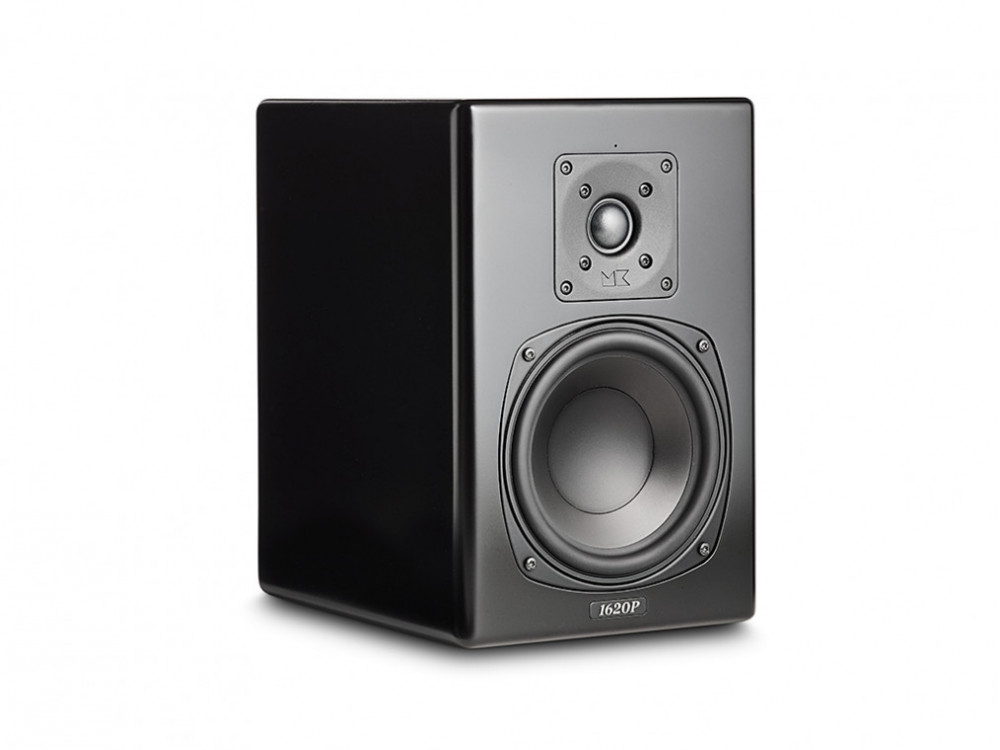

M&K Sound Miller & Kreisel MPS-1620P

Aktiv studiomonitor MPS1620P - New Edition

Flexibel studiomonitorhögtalare att användas för referensinspelningar, redigering, bearbetning och mastermixning för musik och filmproduktioner.


The MPS 1620P studio monitor feature a long stroke 6.5” driver and a low compression 1” dome tweeter to provide impressive sound impact for high resolution “sound productions”

The dual channel power amplifiers drive the bass-midrange and high frequency sections with great precision and full control of signal dynamics.

The MPS1620P can operate both as a sealed or a ported loudspeaker due to the removeable “port plug system” at the rear side of speaker.

When operating with subwoofer, the choice of sealed box configuration and filter set to “normal” will provide the classic M&K Sound sub/sat crossover configuration, while when using the MPS1620P as a stand-alone monitor, the ported configuration with filter set to “full-range” will extend bass response and provider precise “broad band” response for near field monitor applications.

MPS1620P is a flexible high precision studio monitor to use for reference recordings, editing, processing, and master mixing for music and movie productions.


Specifications

Amplifier power bass-midrange:
100watt RMS/200watt peak

Amplifier power high frequency:
50watt RMS/100watt peak

Bass/Midrange:
1 x 6,5” polypropylene woofer

High frequency Drivers:
1 x 1” soft dome tweeter

Frequency Response:
Sealed/normal setting 80-22KHz +/-2dB / (wall or console loaded) 45-22Khz +/-2dB
Ported/normal setting 45-22KHz +/-2dB
Ported/full range setting / (wall or console loaded) 35-22Khz +/-2dB

Total Harmonic distortion:
0,025% into 8 ohms LF channel / 0.025% into 4 ohms HF channel

Signal to noise ratio:
100dB

AC power consumption:
Standby/Average/Max (15W, 30W, 240W)

AC line voltage:
115VAC/60Hz 2A – 230VAC/50Hz 1A

Input impedance:
unbalanced 11kohm / balanced 22Kohm

Input sensitivity unbalanced
100mV 88dB 1m / balanced 200mV 88dB 1m

Max output level:
106dB/100Hz

Max input:
24dBu balanced

High pass filter:
Fixed 80 Hz (24dB)

Dimensions HxWxD:
321 x 213 x 297 mm

Weight:
9,2 kg

Finish:
Black satin
