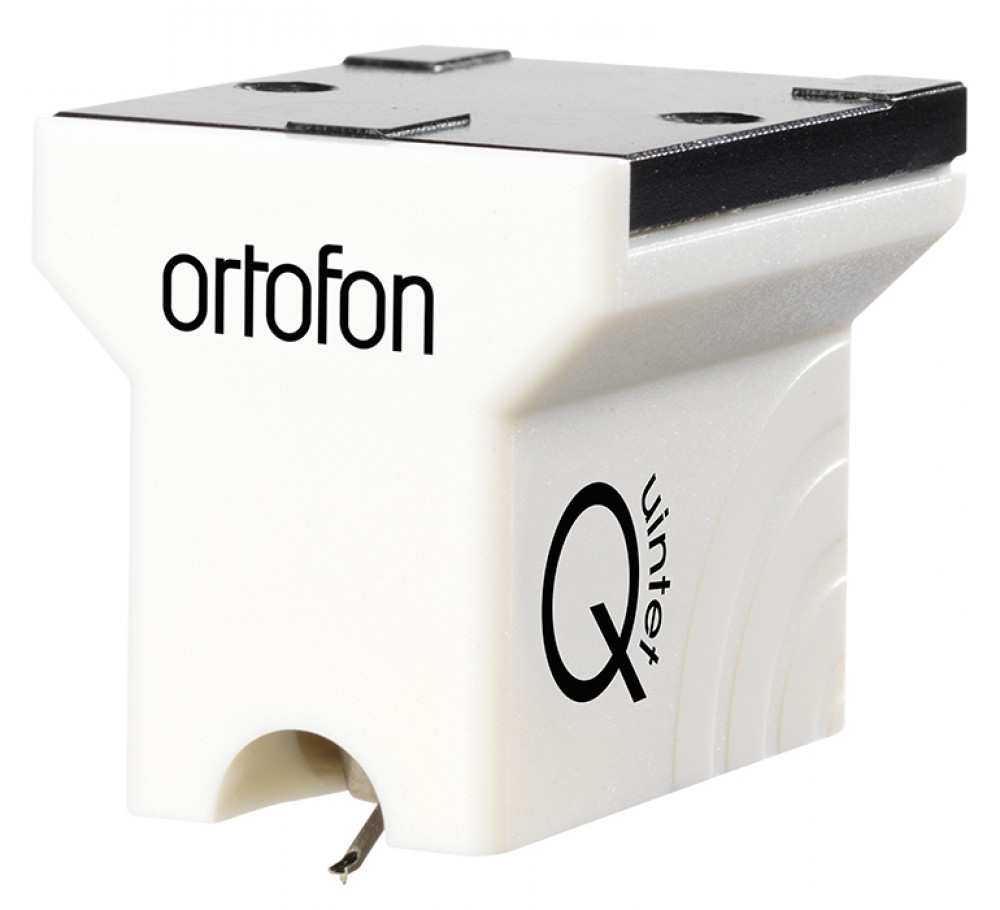

Ortofon Quintet Mono

Quintet Mono är en mono MC-pickup för att spela mono-vinyl på bästa möjliga sätt.

A True Mono from Ortofon

It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.

Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Specifications Quintet Mono

Output voltage at 1 kHz 5 cm/sec - 0.3 mV
Frequency range at -3 dB - 20-25.000 Hz
Frequency response 20 Hz - 20 kHz - +/-2.0 dB
Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
Compliance, dynamic, lateral - 15 μm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 μm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force recommended - 2.3 g (23 mN)
Tracking angle - 20º
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - >20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Pure 4-nines silver/Ag
Cartridge colour - White
Cartridge weight - 9 g
*) Typical value
