Sonance IS10 - Invisible Series Speaker /st

Sonance Invisible Series Speaker IS10
Mer produktinformation

Kontakta oss för frågor eller köp!

Sonance Invisible Series Speakers Featuring Motion Flex Technology

Sonance Invisible Series


KEY FEATURES

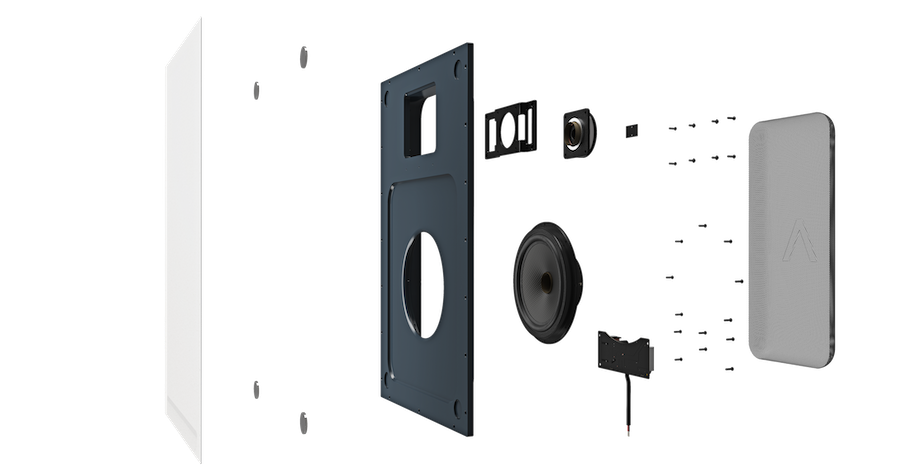

MOTION FLEX TECHNOLOGY

A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible speaker

WAVE FLEX DRIVE UNIT

High-bandwidth midrange and high-frequency transducer that leverage the bending-wave principle, delivering velvety-smooth mids and crystal-clear highs

AIR FLEX WOOFER

Glass-fiber woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass

ACOUSTICALLY ISOLATED BAFFLE

The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before

CONSTANT DIRECTIVITY CROSSOVER (CDX)

The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greater fidelity and coverage and almost 180° of horizontal and vertical dispersion

SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM

Uses a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker, allowing for a consistent finish and performance within specifications every time


Specifications - IS10

SKU: 93480
Wave Flex Drive Unit: 29in² (188cm²) bending wave diaphragm 1.75" (44mm) voice coil
Air Flex Woofer: 244in² (1573cm²) air pulse diaphragm 10" (254mm) carbon fiber woofer
Frequency Response: 35Hz–30kHz (±3dB)
Impedance: 6 Ohms Nominal
Power Handling (RMS): 200W
Sensitivity (2.83V/1m): 87dB
Transformer:
Transformer Taps:
Overload Protection:
Dispersion: 170º hemispherical up to 10kHz
Dims (WxHxD): 16.10" x 28.66" x 3.15" (409mm x 728mm x 80mm)
Mounting Depth: 2.68" (68mm)
Back Dims (WxH):
Product Weight: 18.85 lbs (8.55 kgs)
Shipping Weight: 47.38 lbs (21.49 kgs)
Compatible Space Saver: IS-SAVER-L, SKU 93494
Compatible Enclosure: IS-ENCL-L, SKU 93490

Modell
IS10 - Invisible Series Speaker /st
Artikelnummer
2434_93480
Varumärke
Jämför produkt
Modellbeskrivning
Modell
IS10
Typ av produkt
In-wall högtalare
Aktiv/passiv modell Beskriver om högtalaren är aktiv eller passiv. Passiva högtalare ansluts till en förstärkare via högtalarkabel. Aktiva högtalare har inbyggd förstärkare och behöver därför ingen extra förstärkning. De aktiva ansluts till ett vägguttag (portabla modeller är batteridrivna). Om aktiva högtalarna säljs i par, ansluts ibland endast ena högtalaren till elnätet, varvid andra högtalaren ansluts till den strömförsörjda huvudhögtalaren.
Passiv
