Sonance VX86 Visual Experience

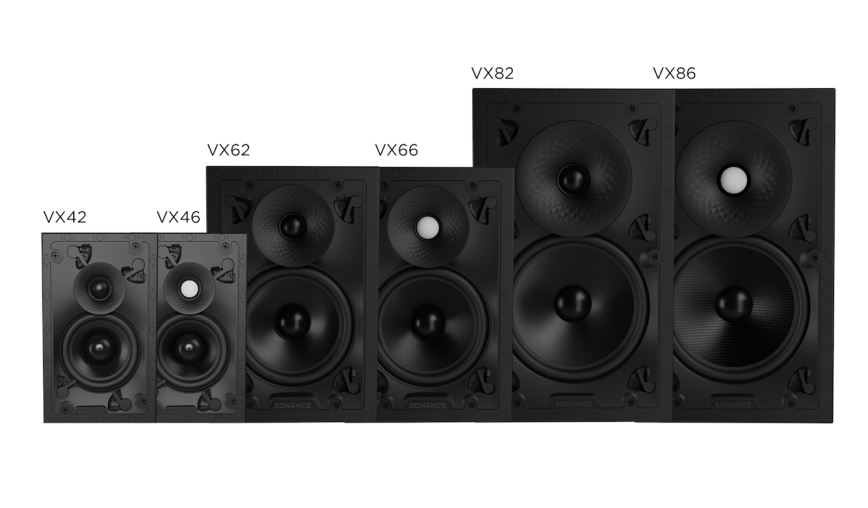

VISUAL EXPERIENCE SERIES IN-WALL SPEAKERS

Sonance Visual Experience Series leverages four decades of speaker design and innovation success to inspire and reimagine speaker technology for the future. Our first loudspeaker to be engineered by an iterative combination of simulation and machine learning, Sonance VX Series is expertly engineered for superior performance, finish, installation, and above all, experience.

VX86 - TECHNICAL SPECIFICATIONS

SKU 96007 - Pair
Tweeter 1.2” (30mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Woofer 8” (203mm) Kevlar/Nomex cone, rubber surround
Dispersion Technology Sinusoidal textured waveguide
Frequency Response 34Hz - 20kHz +/-3dB
Impedance 8 ohms nominal; 6 ohms minimum
Power Handling (RMS) 5 watts minimum; 150 watts maximum
Sensitivity (2.83V/1m) 91dB SPL
Mounting Technology Flex Frame 1- or 2-stage, 6 RotoLock® Clamps
Micro Trim Grille (WxH) 9.72” x 15.87” (246.8mm x 403.1mm)
Trimless Grille (WxH) 9.37” x 15.52” (238.0mm x 394.3mm)
Speaker Mounting Depth (D) 3.64” (92.4mm)
Mounting Depth + Retrofit Encl. 3.86” (98.1mm)
Cut-Out Dims (WxH) 8.5” x 14.5” (216mm x 368mm)
Shipping Weight 20 lbs. (9kg)

Säljs per par.
