StormAudio PA 16 MK3

16-channel, power amplifier
Mer produktinformation
Garanti i 60 månader

Kontakta oss för frågor eller köp!

16-channel, power amplifier

StormAudio - Exclusive partner in the introduction of Dirac Live Active Room Treatment. Läs mer (extern länk)

Built upon StormAudio’s robust and high-performance MK2 generation, the PA MK3 range shines with its refined and classy appearance.

The result of a close collaboration with Danish company Pascal Audio, StormAudio’s philosophy of reliable, controllable and impressive-sounding products is reflected in the Class D technology used in our amplifiers.

With its UMAC™ Class D technology, the PA MK3 range demonstrates audiophile performance with high-efficiency, high-dynamic range and very low distortion. With four individual UREC™ technology-based power supplies, each PA MK3 offers up to 3kW of power capacity with instantaneous response, adapting in real time to the demanding dynamics of cinema soundtrack reproduction.

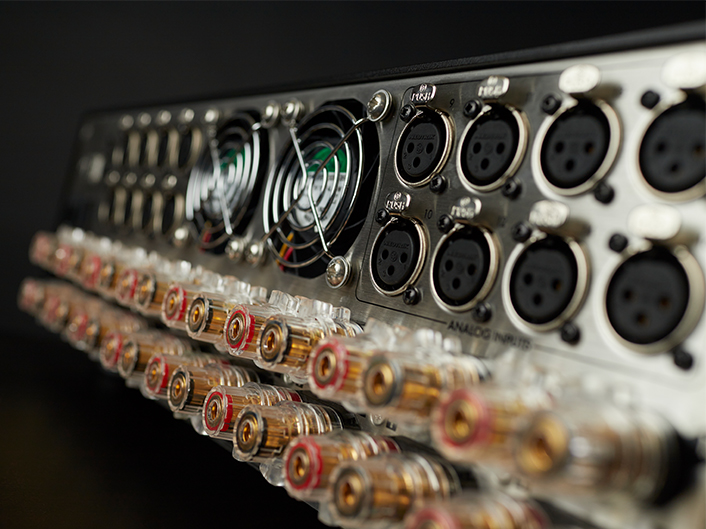

If high channel count is required in your installation, you will find the solution in the PA 16 MK3, with its 16 XLR channels input.
When partnered with our ISP products, all PA MK3 status information becomes accessible to the installer within the ISP WebUI interface thanks to StormMonitoring technology, allowing for total visibility of the installation, whether locally or remotely.

All in all, the PA MK3 range delivers a without-compromise offering to power any installation.


The PA 16 MK3 includes:

OUTPUTS
3-way binding post, 4mm wire

CONTROL
Ethernet (Monitoring)
Trigger IN

RACK SIZE
3RU

INPUTS
16ch XLR

CONFIGURATION
16ch Single Ended
Class D

SPECIFICATIONS
SNR (p-rated) : 115dB
THD+N (1W) : <0.005%

16ch SE, 26 dB gain
Power, all channels driven, 0,1% THD+N

Modell
PA 16 MK3
Artikelnummer
1001_SC-X-PA-16-MK3
Varumärke
Jämför produkt
Modellbeskrivning
Modell
PA 16 MK3
Typ av produkt
Hemmabioslutsteg
Tekniska specifikationer
Antal kanaler
16
Effekt per kanal
200W (2 channels driven, RMS 8 Ω, 1 kHz 0.1% distortion)
Analoga ljudingångar
Balanserade, analoga stereoingångar (XLR)
16
Högtalaranslutningar
Högtalaranslutningar
3-vägs terminal, för 4mm kabel
Övriga ingångar och utgångar
Trigger
1 in, 1 ut
Energi, strömförsörjning och miljö
Förstärkarklass
Class D
Mått och vikt
Bredd
441 mm
Höjd
130 mm
Djup
490 mm
Förtydligande gällande angiven Bredd / Höjd / Djup
Utan racköron, utan fötter, inkl anslutningar
Rackhöjd
3U
