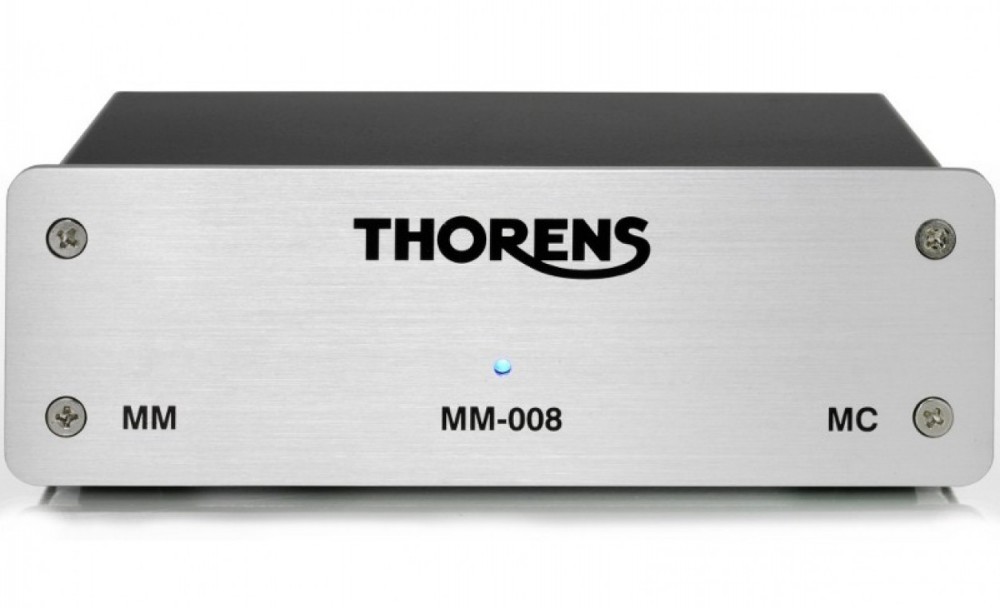

Thorens MM 008

MM/MC RIAA-steg

• Kompakt format

• Extern nätdel

• Chassi helt i metall

• Frontpanel i borstad aluminium

• Ingången för MM-pickuper har en last på 47 kOhm

• Två ingångar för MC-pickuper, varav den ena "MC Load" har justerbar ingångsimpedans (10 Ohm, 100 Ohm eller 1 kOhm)

• Den externa nätdelen och ett chassi helt i metall gör att signalen kan bevaras tack vare ökad stabilitet.


Specifikationer:

Mode: MM/MC (switchable)

Gain at 1 kHz: 40 dB (MM)/60 dB (MC)

Input impedance (MM): 47 kΩ + 220 pF fixed

Input impedance (MC): 47 kΩ + 1 nF (modifiable with external load plugs)

Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB

Frequency response (-3 dB): 10 Hz - 50 kHz

RIAA curve accuracy: ±0.3 dB

THD+N: <0.013% (MM)/<0.055% (MC)

signal-to-noise ratio:="">86 dB (MM)/>72 dB (MC)

Crosstalk: ≧40 dB

Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)

Input sensitivity (MC): 0.325 mVrms for -10 dBV output (316 mVrms)

Max. output voltage: 482 mVrms at 5 mVrms input (1 kHz)

Output impedance: 47 Ω

Input connections: 3 pairs of RCA sockets (left/right)

Output connections: 1 pair of RCA sockets (left/right)

Power supply: 24 V DC

Power consumption: 3.4 W/15 mA

Weight: 504 g (not including power supply)

Dimensions (W x H x D): 150 x 50 x 117 mm
