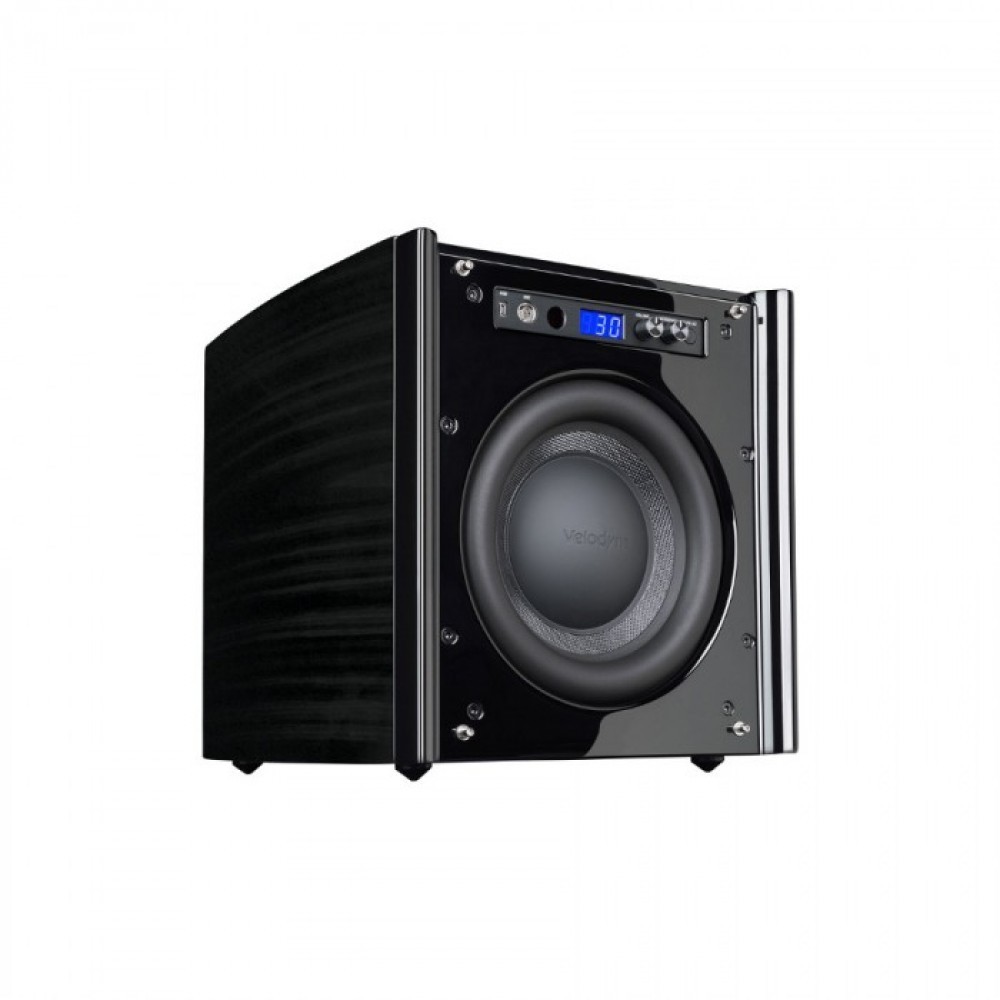

Velodyne DD-10 Plus

Velodyne Acoustics Digital Drive Plus

Highest precision at lowest frequencies

Cutting-edge technology for real gourmets

The Digital Drive Plus series redefines the term subwoofer. Digitally controlled drivers with impressive performance, almost endless power and the latest calibration algorithms with extensive adjustment options make these subwoofers precision tools of a special class.

State-of-the-art technologies coupled with decades of experience in building subwoofers

make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement

The Features

• High-performance chassis with six-way, hand-wound voice coils.
• Digital diaphragm control with 16,000 samples per second
• High-precision automatic calibration with software connection for fine tuning
• Powerful amplifiers with 1,250 watts RMS and 3,000 watts impulse power


Digital Drive 10 Plus

Driver 10″ forward firing
Amplifier Class D 3000 watts dynamic, 1250 watts RMS power
Frequency Response: Overall 10.5 – 300 Hz
Frequency Response: (± 3 dB) 18.7 – 120 Hz
THD < 0.5 % (typical)
High Pass Crossover 80 or 100 Hz at 6 dB/octave
Low Pass Crossover 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope. Default: 80 Hz @ 24 dB/Octave
Phase 0 to 180 degrees (variable in 15 degree increments)
Polarity Adjustable (+/-)
Magnet Structure 35 lbs.
Voice Coil Six-layer, 65 mm
Cone Fiberglass Rohacell Laminate
Input LFE (Mono) Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K
Input L&R Line level (RCA & XLR)
Input Microphone Balanced (Mini-XLR, cable included)
Input Speaker Level (L&R) Bare wire, banana plugs, or spade lugs
Output Thru (L&R) Line level (RCA & XLR)
Output (L&R), High-Pass (L&R) Line level (RCA & XLR)
Included Accessories Full feature remote control, DD+ accessory kit and video cable
Finishes Black gloss ebony or Piano Black
Dimensions (H/W/D) (includes feet and connectors) 36 x 33 x 42 cm
Shipping Weight (approx) 34 kg
